Heat diffusion#
A warm plate with a cold edge
A plate is warm in the middle and its edge is held cold. Each grid cell moves toward the average of its four neighbours, and the warmth spreads out. This is the textbook explicit heat step, and it is a stencil: every cell reads the cells around it.
Time: ~5 min · Runs on: CPU (same code on GPU) · You need: hawk, NumPy and matplotlib; read first: hawk in your domain
Colab or Kaggle: run this first cell (it installs the packages and downloads the helper files this notebook uses). Elsewhere it only checks the imports.
import sys, pathlib
sys.path.insert(0, str(pathlib.Path.cwd().parent / "_shared"))
from nb_helpers import gpu_available, on_device, plot_style, show, to_numpy, xp
plot_style()
The plate’s words#
Say the vocabulary first. The plate is a field of temperatures u and one number r, the share of the gap to the neighbours’ average that a cell closes in one step. Declare them once as a KernelKind; the step below is written in these names.
from hawk import Param, Scalar
from hawk.ext import DATA_ONLY, KernelKind
class Plate(KernelKind, slug="plate"):
u: Scalar # temperature of a cell
r: Param # diffusion number: kappa dt / h^2, at most 1/4 for a stable step
guard = DATA_ONLY
Plate
__main__.Plate
The step, one cell at a time#
A Grid names the lane axes: here row and col. A bare label ("row") is sized when you run the kernel (row=N
below), and only the first axis may be bare; "col":width fixes that axis in the kernel. The last axis declared is the
fastest: consecutive lanes run along col, so on a GPU neighbouring threads read neighbouring memory, and on a CPU they
fill the SIMD lanes. u.at(row=i - 1, col=j) reads
the cell above, and so on. The cells on the edge have no neighbour on one side, so the body picks the edge value
with an if/else and returns once at the end.
The step is u + r * (up + down + left + right - 4 u), with r = alpha dt / dx^2. The explicit scheme is stable for
r <= 0.25. The quantities are dimensionless: lengths in cells, time in steps, diffusivity 1 on a unit plate.
import numpy as np
import eagle
import hawk
import hawk.math as m
from hawk import Grid, Param, Scalar
def heat_kernel(width):
@Plate
def heat_step(lane: Grid["row", "col":width], u, r) -> Scalar:
i, j = lane.row, lane.col
if m.land(m.land(i > 0, i < width - 1), m.land(j > 0, j < width - 1)):
out = u + r * (u.at(row=i - 1, col=j) + u.at(row=i + 1, col=j)
+ u.at(row=i, col=j - 1) + u.at(row=i, col=j + 1) - 4.0 * u)
else:
out = 0.0 # the edge is held at zero
return out
return eagle.deploy(heat_step)
def blob(width):
"""Zero everywhere except a warm square in the middle."""
u = np.zeros((width, width))
c, k = width // 2, width // 8
u[c - k:c + k, c - k:c + k] = 1.0
return u
N, R = 48, 0.2
step = heat_kernel(N)
u0 = blob(N)
u1 = step.run(u=u0, r=R, row=N)
u1.shape
(48, 48)
Check one step against NumPy#
The same step written with array slices gives the answer to compare with.
def numpy_step(u, r):
out = np.zeros_like(u)
out[1:-1, 1:-1] = u[1:-1, 1:-1] + r * (u[:-2, 1:-1] + u[2:, 1:-1] + u[1:-1, :-2] + u[1:-1, 2:] - 4.0 * u[1:-1, 1:-1])
return out
TOL = 1e-12
err = np.abs(u1 - numpy_step(u0, R)).max()
assert err < TOL, err
print(f"one step: largest difference from NumPy {err:.1e} < {TOL:g}")
one step: largest difference from NumPy 0.0e+00 < 1e-12
Run it#
Feed each result back in as the next input. Two arrays (copies of the start, so the start stays intact) take turns.
step.bind(...) ties one launch to its input and output arrays. We bind twice: forward reads a and writes b,
backward reads b and writes a. A step is then one .launch(), alternating the two. On a GPU the arrays live on the device for the whole run and only the
frames we keep come home (xp is CuPy there, NumPy otherwise).
The warmth can only leave through the cold edge, so the total heat must fall. The run adds up what crosses the edge step by step, on the device, and once per frame checks that the total dropped by exactly that, and that the field stayed between its start values (0 and 1).
steps_per_frame, n_frames = 8, 36
a, b = xp.array(u0), xp.zeros((N, N))
forward = step.bind(u=a, out=b, r=R, row=N) # a -> b
backward = step.bind(u=b, out=a, r=R, row=N) # b -> a
launches, arrays, which = (forward, backward), (a, b), 0
frames, total = [u0], [u0.sum()]
for _ in range(n_frames - 1):
lost = xp.zeros(())
for _ in range(steps_per_frame):
src = arrays[which]
lost += R * (src[1, 1:-1].sum() + src[-2, 1:-1].sum() + src[1:-1, 1].sum() + src[1:-1, -2].sum())
launches[which].launch()
which = 1 - which
u = arrays[which]
assert abs(total[-1] - float(u.sum()) - float(lost)) < 1e-9, "heat leaves only through the edge"
assert 0.0 <= float(u.min()) and float(u.max()) <= 1.0, "the field stays between its start values"
frames.append(to_numpy(u).copy())
total.append(float(u.sum()))
u = to_numpy(u)
total = np.array(total)
assert np.all(np.diff(total) <= 1e-12), "heat must not grow"
print(f"total heat: {total[0]:.2f} -> {total[-1]:.2f}; peak {u0.max():.2f} -> {u.max():.2f}")
total heat: 144.00 -> 124.67; peak 1.00 -> 0.18
Check the physics#
Matching NumPy tests the code, not the equation. The lowest sine mode sin(pi x) sin(pi y) has a known fate: each step
multiplies it by exactly g = 1 - 8 r sin^2(pi / (2 (N - 1))), and over time t the true heat equation damps it by
exp(-2 pi^2 t). The loop above also checked, at every step, that the heat lost equals r times the cells next to the
edge, and that the field stayed between 0 and 1.
x = np.arange(N) / (N - 1)
mode = np.outer(np.sin(np.pi * x), np.sin(np.pi * x))
g = 1 - 8 * R * np.sin(np.pi / (2 * (N - 1))) ** 2
n_steps = 280 # even, so the result is back in `a`
a, b = xp.array(mode), xp.zeros((N, N))
forward = step.bind(u=a, out=b, r=R, row=N)
backward = step.bind(u=b, out=a, r=R, row=N)
for _ in range(n_steps // 2):
forward.launch()
backward.launch()
TOL_MODE = 1e-12
assert np.abs(to_numpy(a) - g ** n_steps * mode).max() < TOL_MODE
t = n_steps * R / (N - 1) ** 2
print(f"mode after {n_steps} steps: {g ** n_steps:.4f} of its start; continuum exp(-2 pi^2 t) = {np.exp(-2 * np.pi ** 2 * t):.4f}")
mode after 280 steps: 0.6061 of its start; continuum exp(-2 pi^2 t) = 0.6063
The field at the start and at the end:
import matplotlib.pyplot as plt
fig, axes = plt.subplots(1, 2, figsize=(6.4, 3.0), constrained_layout=True)
for ax, f, title in zip(axes, (frames[0], frames[-1]), ("start", f"after {steps_per_frame * (n_frames - 1)} steps")):
im = ax.imshow(f, vmin=0, vmax=1, cmap="magma")
ax.set_title(title); ax.set_xlabel("x (cells)")
axes[0].set_ylabel("y (cells)")
fig.colorbar(im, ax=axes, shrink=0.8, label="temperature u (dimensionless)")
show()
A bigger grid, when a GPU is there#
The width is part of the kernel, so the larger grid is the same function called with a larger number. Where the data
lies decides where the kernel runs: a NumPy array runs on the host, a CuPy array on the GPU. So here the input is handed
over as a device array, and the result comes back as one; the check against NumPy copies it home first. To choose a side yourself, use step.host.run(...) or step.device.run(...): the device plan takes NumPy
arrays, uploads them, runs on the GPU and brings the result home.
if gpu_available():
big = 1024
big_step = heat_kernel(big)
ub = blob(big)
got = big_step.run(u=xp.asarray(ub), r=R, row=big)
assert on_device(got), "the result is a device array: the kernel ran on the GPU"
err = np.abs(to_numpy(got) - numpy_step(ub, R)).max()
assert err < TOL, err
print(f"{big} x {big} on the GPU (result is a device array): largest difference from NumPy {err:.1e}")
else:
print("no GPU here; the grid stays at", N, "x", N)
1024 x 1024 on the GPU (result is a device array): largest difference from NumPy 0.0e+00
The animation#

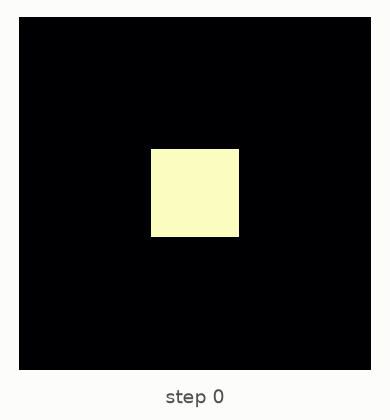

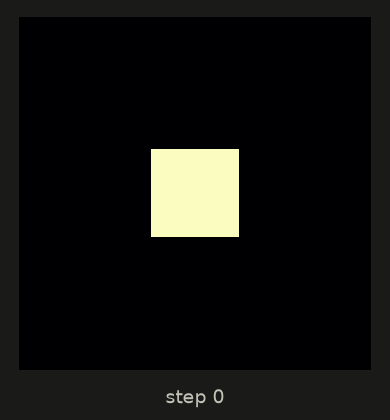

The last cell writes the frames as a looping GIF, one for a light page and one for a dark page. The page below shows the file that was written when the notebook last ran.
import matplotlib.pyplot as plt
from anim import frame_of, write_anim
from themed_figure import DARK, LIGHT
def render(theme, field, label):
pal = LIGHT if theme == "light" else DARK
fig = plt.figure(figsize=(2.6, 2.8), dpi=80, facecolor=pal["bg"])
ax = fig.add_axes([0.04, 0.12, 0.92, 0.84])
ax.axis("off")
ax.imshow(field, vmin=0.0, vmax=1.0, cmap="magma", interpolation="nearest")
fig.text(0.5, 0.04, label, ha="center", fontsize=9, color=pal["sub"])
return frame_of(fig, pal["bg"])
for theme in ("light", "dark"):
movie = [render(theme, f, f"step {k * steps_per_frame}") for k, f in enumerate(frames)]
for name, size in write_anim(movie, "heat_diffusion_" + theme).items():
print(name, f"{size / 1e3:.0f} kB")
heat_diffusion_light.gif 386 kB
heat_diffusion_dark.gif 386 kB
What just happened#
Grid["row", "col":N]named the two axes;u.at(row=..., col=...)read the neighbours.The edge cells took their value from the
elsebranch; the body returns once.One step matched NumPy to rounding, and the total heat only fell, by exactly what crossed the edge.
The lowest sine mode decayed by the exact predicted factor, within 3e-4 of the continuum.
Next#
Fluids moves a conserved quantity across the same kind of grid.
