Gradients, forward (and what autodiff refuses)

Push one direction through a kernel instead of pulling one back — and see the two kinds of kernel hawk’s autodiff will not differentiate.

Time: ~8 min · Runs on: CPU · You need: Gradients, backward

hawk.diff.jvp (“Jacobian-vector product”, the forward-mode rule) seeds one tangent plane per wrt input — a small perturbation of that input — instead of one adjoint per output, and pushes it forward along the same derivation vjp uses: the directional derivative of the output along that input direction.

Show code cell source

Hide code cell source

import sys, pathlib
sys.path.insert(0, str(pathlib.Path.cwd().parent / "_shared"))
from nb_helpers import plot_style
plot_style()

import numpy as np

import hawk
from hawk import Mutable, Scalar, Vector
from hawk.math import dot


@hawk.kernel
def energy(v: Vector[3], out: Mutable[Scalar]):
    out = 0.5 * dot(v, v)


energy

<Kernel energy slots=2>

jvp(primal, wrt=...) derives the forward IR; build both kernels:

import pathlib, tempfile

from hawk import Kernel
from hawk.diff import jvp

energy_jvp = Kernel("energy_jvp", jvp(energy, wrt=("v",)))
work_dir = pathlib.Path(tempfile.mkdtemp())
hawk.build([energy, energy_jvp], work_dir, targets=("host",));

n = 500
rng = np.random.default_rng(3)
v = rng.normal(size=(3, n))
dot_v = rng.normal(size=(3, n))   # the tangent direction to differentiate along
dot_out = np.zeros(n)
hawk.run(hawk.load(work_dir, "energy_jvp"), v=v, dot_v=dot_v, dot_out=dot_out)

h = 1e-6
out_p, out_m = np.zeros(n), np.zeros(n)
energy_host = hawk.load(work_dir, "energy")
hawk.run(energy_host, v=v + h * dot_v, out=out_p)
hawk.run(energy_host, v=v - h * dot_v, out=out_m)
fd = (out_p - out_m) / (2 * h)
diff = np.max(np.abs(dot_out - fd))
print("max|jvp - central difference| over", n, "samples:", diff)

max|jvp - central difference| over 500 samples: 1.1460876692126476e-09

Show code cell source

Hide code cell source

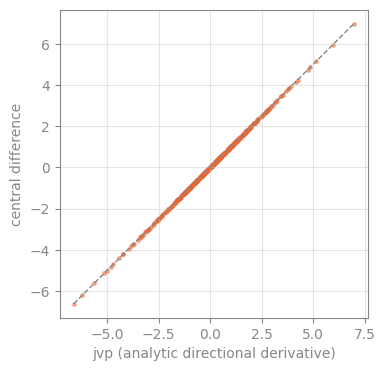

import matplotlib.pyplot as plt

fig, ax = plt.subplots(figsize=(4, 4))
lo, hi = dot_out.min(), dot_out.max()
ax.plot([lo, hi], [lo, hi], color="#898781", lw=1, ls="--")
ax.scatter(dot_out, fd, s=6, color="#eb6834", alpha=0.5)
ax.set_xlabel("jvp (analytic directional derivative)"); ax.set_ylabel("central difference")
ax.set_aspect("equal"); ax.grid(alpha=0.4)
plt.show()

dot_v names the input tangent, dot_out the output tangent — the same dot_<name> convention on every forward-mode kernel.

A terminated sample’s derivative is exactly zero

A kernel that reads Terminated only as a mask, never its own state from before this launch, can still be differentiated — and a sample the guard skips contributes exactly zero to the derived output, live samples unaffected:

from hawk import Terminated


@hawk.kernel
def diagnostic(x: Scalar, terminated: Terminated, y: Mutable[Scalar]):
    y = x + 1.0


diagnostic_jvp = Kernel("diagnostic_jvp", jvp(diagnostic, wrt=("x",)))
diag_dir = pathlib.Path(tempfile.mkdtemp())
hawk.build([diagnostic, diagnostic_jvp], diag_dir, targets=("host",));

x = np.arange(8, dtype=float) + 1.0
terminated = np.zeros(8, dtype=bool)
terminated[4:] = True                 # the second half is already done
dot_x, dot_y = np.full(8, 0.4), np.zeros(8)
diag_jvp_host = hawk.load(diag_dir, "diagnostic_jvp")
hawk.run(diag_jvp_host, x=x, terminated=terminated, dot_x=dot_x, dot_y=dot_y)
print("dot_y (live samples keep dy/dx=1, terminated samples are exactly 0):", dot_y)

dot_y (live samples keep dy/dx=1, terminated samples are exactly 0): [0.4 0.4 0.4 0.4 0.  0.  0.  0. ]

What hawk refuses outright

hawk keeps no tape across launches. A Mutable plane read before it is written in the SAME body — its launch-start value, a running total carried forward from the previous launch — is a recurrence the differentiated launch alone cannot see the whole of, so vjp/jvp refuse a kernel that reads one, by name, rather than silently returning a derivative that is wrong for part of what the kernel computes:

from hawk.ir import HawkError
from hawk.diff import vjp


@hawk.kernel
def running_total(x: Scalar, terminated: Terminated, acc: Mutable[Scalar]):
    acc = acc + x   # reads acc's launch-start value -- a recurrence across launches


try:
    vjp(running_total)
except HawkError as exc:
    print("refused:", exc)

refused: 'acc' is read before it is assigned: a plane's launch-start value is a recurrence across launches; its derivative needs the value the primal launch overwrites, and hawk keeps no tape — differentiate the per-launch term instead

What just happened

• jvp(primal, wrt=...) pushes one input tangent (dot_<name>) forward into one output tangent (dot_<name>) — the same derivation vjp uses, read the other way.

• A sample the Terminated guard skips gets an exactly zero derivative (reverse or forward); a live sample’s derivative is unaffected.

• A kernel that reads a Mutable plane’s launch-start value — a recurrence carried from the previous launch — refuses differentiation outright, naming the plane, rather than returning a derivative that is quietly wrong.

Try this

Change terminated[4:] = True to terminated[:] = True and re-run: every dot_y is exactly zero.

Next

Lookups, scatters and sums — read a table, scatter into bins, and reduce a batch — the three plane kinds every tutorial so far has skipped.
